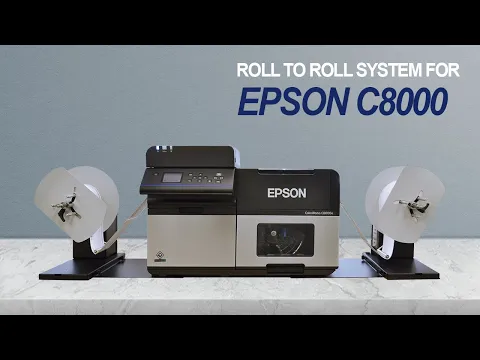

DPR Roll to Roll System for Epson C8000 Printer
DPR Unwinder & Rewinder Systems for Epson C8000 Industrial Label Printer
The DPR Unwinder and Rewinder systems are designed to streamline media handling for the Epson C8000 Label Printer, offering unparalleled precision and flexibility. These systems efficiently handle labels up to 127mm (5”) wide, supporting rolls with an outer diameter of up to 250mm (9.84”). With options for adjustable core holders ranging from 40mm to 118mm (1.57” to 4.64”) or fixed 3” core holders, the solutions are tailored to meet diverse labelling requirements. This innovative setup ensures compatibility across a wide range of media formats, making it ideal for demanding labelling operations in various industries.
Optimised Functionality for Unwinding & Rewinding
Both the Unwinder and Rewinder feature advanced tension arm calibration for seamless operation. The tension arm dynamically adjusts to the printer's media movements, ensuring accurate unwinding and rewinding processes. When the printer forwards the media, the tension arm facilitates smooth unwinding or rewinding, and it remains idle when in a neutral position. This intelligent system not only enhances the efficiency of media handling but also ensures precise alignment and consistent operation, reducing the risk of media errors during printing.
Customisable Speed & Label Orientation
With dual speed adjustment options and a user-friendly control panel, these devices allow for optimal operational customisation. The external power supply and electronic circuit enable automatic adjustment of rotation direction and speed based on the tension arm's position. Users can easily set the maximum speed required while the tension arm adjusts dynamically. Additionally, the system supports face-in or face-out label rewinding, providing flexibility for specific labelling needs. This adaptability is crucial for maintaining productivity and ensuring output consistency.
Enhanced Alignment with Dedicated Printer Plates
To achieve flawless media alignment, dedicated printer plates are available to securely connect the DPR Unwinder and Rewinders to the Epson C8000. These plates are designed to create a perfectly aligned media path, minimising disruptions and maximising precision during operations. With options like the EPS80PL-UW and EPS80PL-RW, users can seamlessly integrate the Unwinder and Rewinder systems into their printing setup. This comprehensive solution ensures optimal performance, extending the capabilities of the Epson C8000 for professional-grade labelling tasks.
Key Features
- The system streamlines media handling, supporting labels up to 127mm wide and rolls with an outer diameter of up to 250mm
- It offers versatile core options with adjustable core holders ranging from 40mm to 118mm or fixed 3 inch core holders to suit various labelling needs.
- The dynamic tension arm automatically adjusts for smooth unwinding and rewinding, ensuring consistent operation and media alignment.
- Advanced speed control includes dual adjustment options that allow users to set maximum speed, with the system dynamically adjusting as needed.
- Flexible label orientation supports face-in or face-out label rewinding for customisable output.
- Precise alignment is ensured with dedicated printer plates like the EPS80PL-UW and EPS80PL-RW, maintaining a flawless media path.
- The system is designed for seamless integration with the Epson C8000, providing professional-grade labelling solutions for demanding industries.
