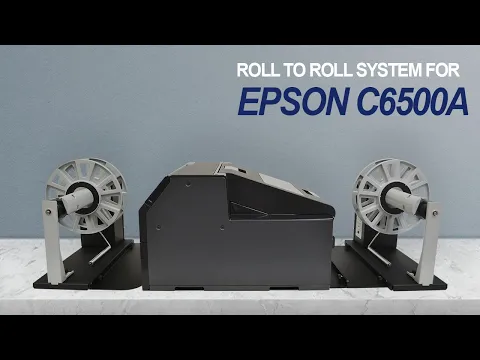

DPR Roll to Roll System for Epson C6000A & C6500A Printers
The Roll to Roll system specifically designed for EpsonC6000A / C6500A colour label printer can handle rolls up to 220mm (8.66”) media wide and having an outside diameter up to 250mm (10”). Both Unwinder and Rewinder are equipped with a fixed 3” core holder.
An external power supply 100/240VAC - 2.5A at 24V allows an electronic circuit to provide, through the tension arm,the automatic adjustment of the rotation direction and speed.
LABEL UNWINDER Used to increase the input roll capacity, it unwinds automatically the rolls having face-out labels only. The position of the tension arm is calibrated as follows:- When the printer forwards the media for printing, the tension arm goes up, the device unwinds the media.- When the tension arm is in the middle position, the device is idle.- When the printer pulls back the media, the tension arm goes down, the device rewinds it
LABEL REWINDER Used to rewind automatically face-in or face-out the printed labels.The position of the tension arm is calibrated as follows:- When the printer forwards the printed media, the tension arm goes down, the device rewinds the media.- When the tension arm is in the middle position, the device is idle.- When the printer pulls back the media, the tension arm goes up, the device unwinds it
PRINTER PLATE In order to guarantee a perfectly aligned media path, a specific baseplate which easily accommodates the Epson C6000A / C6500A is recommended to have a complete Roll to Roll printing station
Key Features
Roll to Roll System for Epson C6000A Series
